StrongArm™ ML10 Mecanical Vehicle Restraint System

FEATURES AND SPECIFICATIONS

Built to Last: Dual finish trivalent dichromate zinc-plated steel housing protects internal components from collision damage, corrosion, and rusting.

Housing Profile: 10 ¾” (273 mm) above grade and complies with NHTSA guidelines.

High Visibility Barrier Arm: Mechanical arm secures ICC bars from 11″ to 26″ (279 mm–660 mm) above grade.

Wall or Ground Mounted Body Assembly: Strong anchor framed bracket with 13″ (330 mm) back plate.

PosiLock™ Securing Technology: Mechanical locking system holds trailers without applying damaging pressure to the deployment mechanism.

Easy Grip Control Rod: Engage and release the ML10 while standing on the dock, no bending or lifting required.

HOLDS STRONG

  • The StrongArm™ ML10 uses 30,000 lb (13,636 kg) of restraining force to prevent premature truck departure during loading and unloading. The unit can be left in the locked position overnight to discourage trailer theft.
  • Complies with ANSI MH30.3 Standard.

EASY TO OPERATE

  • The manually operated ML10 is engaged and released by a single detachable control rod. The risk of employee strain or injury is significantly reduced, because no bending or lifting is required.

NO POWER NECESSARY

  • Certain applications, such as chemical handling facilities or grain storage locations, involve explosive substances and require limited interaction with electrical devices. The ML10 keeps their loading docks safe because of its completely mechanical operation: no control panel or electrical wiring.

Call to inquire about this product

(888)226-3667

Share this
Share on facebook
Share on twitter
Share on pinterest
Share on tumblr
Share on reddit
Share on whatsapp

RELATED PRODUCTS

Vehicle Safety & Restraint

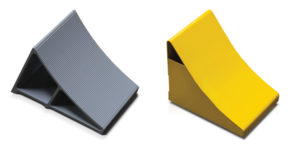

Wheel Chocks
