U-Series Hydraulic Dock Leveler

FEATURES AND SPECIFICATIONS

Blue Giant U-Series Hydraulic Dock Levelers are high-performance systems that operate at the touch of a button. Strategically welded steel beams maximize deck strength and improve product longevity. Hydraulic deck cylinders increase operating efficiency and reduce maintenance requirements, resulting in a lower cost of ownership compared to mechanical dock levelers. Independent lip control is available for all models, decreasing both cycle time and energy use. Biodegradable oil available.

Superior quality, ease of operation, and advanced safety features make the Blue Giant U-Series Hydraulic Dock Leveler an ideal choice for increased productivity at the loading dock.

EASY TO OPERATE

  • Total hydraulic operation eliminates the need for manual deck deployment.
  • The NEMA4X single push-button control station enables sequenced deck and lip operation.
  • Independent lip control is available when the system is upgraded to the Blue Genius™ Touch Control Panel, decreasing cycle time and energy use.

STRUCTURAL INTEGRITY

  • A minimum of six heavy duty U-beams are welded to the underside of the deck at dynamic impact points, preventing “dishing” and extending the life of the dock leveler.
  • The continuous one-piece headboard strengthens the front structure of the deck.
  • A single lip hinge pin enables a stronger distributed load.

DECK FLEX ADVANTAGE

  • The deck structure allows the platform to flex up to 4″ (102 mm) when under load, supporting full-width contact between the lip and the trailer bed.
  • The fixed rear hinge remains flush with the floor to eliminate pinch points and cross-traffic obstruction.

BUILT FOR SAFETY

  • Should the truck depart prematurely, the velocity fuse limits free-fall of a loaded platform within 3” (76 mm).
  • A sturdy maintenance strut prevents accidents during cleaning and servicing.

Call to inquire about this product

(888)226-3667

Share this

RELATED PRODUCTS

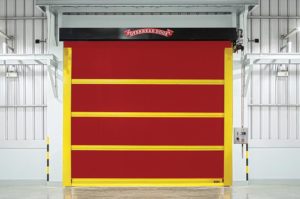

Strutted Interior High Speed Fabric Door (992)
Rapid High Speed Doors

Strutted Interior High Speed Fabric Door (992)

RapidFlex™ Model 992 is a strutted, heavy duty interior high speed fabric door with independently tested static pressure resistance of 76 mph and dynamic ultimate pressure resistance of 53 mph. Its industry-leading

READ MORE
Rolling Grille Series AM-670
Rolling Doors

Rolling Grille Series AM-670

Operation: Electric operator, chain hoist, removable awning crank or crank box Electric operator with automatic emergency egress (670, 671); compliant with IBC 1008.1.4.4 & NFPA 101 Controls: Time clock, card

READ MORE
Aluminum Sectional Doors 500 Series
Doors

Aluminum Sectional Doors 500 Series

1 3/4″ (45 mm) thick, corrosion-resistant 6063-T6, aluminum sections with galvanized fixtures and hinges promotes durability and trouble-free operation. 1/4″ (6 mm) diameter through-rods on all stiles and rails enhances

READ MORE

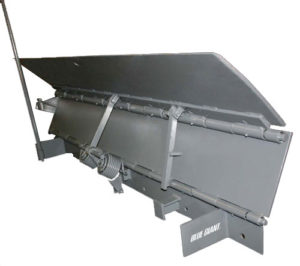

Mechanical Dock Leveler
